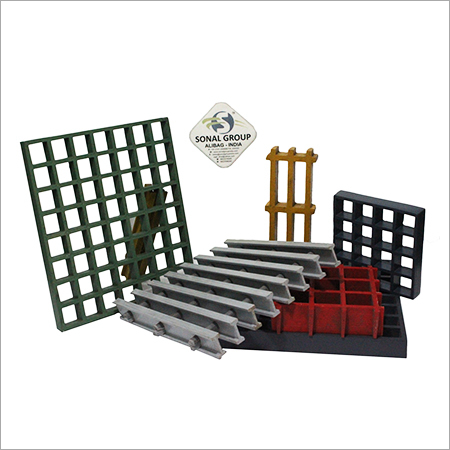

FRP Molded Gratings

FRP Molded Gratings
FRP Molded Gratings
Product Code : SG-19
Brand Name : Sonal Group
Product Description

Outfitted with the highly advanced technical infrastructure and a strong team of professionals, we are engrossed in manufacturing, exporting and supplying FRP Gratings. The offered gratings are used in various household, residential as well as commercial applications. Stringently tested on different parameters of quality, these gratings are known for their precise dimensions, sturdiness and high durability. Also, we make available these FRP Gratings in different sizes and finishes at highly competitive rates for the clients.

Features:

  • Sturdy construction

  • Excellent finish

  • Easy installation

  • Compact size

Other Detail:

SONAL'S FRP gratings are manufactured / fabricated by inter-weaving continuous thoroughly wetted fibreglass strands with a thermosetting resin system.

Liquid resin and the glass rovings are poured into the standard mould manually.

Moulded gratings are taken out of the mould only after curing the resin.

These gratings are the perfect solution for working platforms, walkways, ramps, stair treads, bridges, jetties and are also suitable and widely used in chemical, petrochemical, and fertilizer plants, refineries, oilfields, ports and sewage water treatment plants.

Standard Mesh:

Pitch of rib

40x40c/c mesh

Average Rib Thickness

9x11mm

Grating Thickness (Height)

40mm maximum


Pitch of rib

35x100c/c mesh

Average Rib Thickness

9x11mm

Grating Thickness (Height)

40mm maximum

Economical mesh:

Pitch of rib

40x40c/c mesh

Average Rib Thickness

4x6x11mm

Grating Thickness (Height)

40mm maximum

SONAL'S FRP gratings are manufactured / fabricated by using pultrusion FRP Flat, T & I-section as a load bearing bar and pultrusion FRP rod as a load distributing/transferring member.

I-section bars and rod bars are manufactured by using continuous fiber and various types of polyester resin.

These I-section bars are then assembled with cross rod bars to achieve desired spacing.

SONAL offers many sizes and strength options.

These gratings are the perfect solution for working platforms, walkways, ramps, stair treads, bridges, jetties and are also suitable and widely used in chemical, petrochemical, and fertilizer plants, refineries, oilfields, ports and sewage water treatment plants.

Why SONAL'S FRP Gratings

  • Lightweight

  • High corrosion resistance level

  • Electric insulation

  • Aesthetic value

  • Durability therefore economical

  • Available in Anti skid, Fire Retardant and Ultraviolet Protection Types

Advantages Of FRP Gratings

Corrosion resistant - Resistant to almost all chemicals & in most hostile environments

Light weight - Density 4 times less than steel & 1 times to aluminium

Non-conductive - Does not carry electric current

Maintenance free - No painting, no cleaning required

Lowest in life cycle cost

No rusting. No painting ( in built colour, colour can be of your choice to suit your plant colour)

Easy to install

Aesthetic- Improves the plant look with attractive colours

Gives comfort while walking or standing

Easy to clean - Washable since they are completely rust & corrosion proof

Electronically transparent ( Does not affect electromagnetic or Radio wave frequency)

No welding required while installing

Slip / fall resistant - Special anti-skid surface prevents accidents due to falling or slipping

Fire retardant - Available with class 1 fire rating & oxygen index less than 32

Thermally insulated - so can be installed in areas of high temperatures

Durable & resilient

Resistant to microbial growth

Low installation cost - can be installed by anybody being lightweight & can be cut by hand tools

High strength to weight ratio

Easy to cut to any size - Requires hand tools

Long service life due to superior corrosion resistance, high strength

Impact resistant

Monolithic one-piece construction in moulded type

UV resistant - Prolonged exposure to sunlight is not a problem with FRP grating

Available in any colour of your
