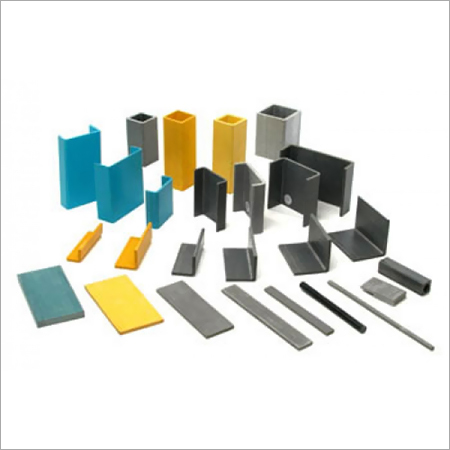

GRP Profiles

GRP Profiles
GRP Profiles
Product Code : SG-04
Brand Name : Sonal Group
Product Description

Our firm is engaged in offering a huge range of GRP Profiles to our respected patrons. These profiles are widely utilized for commercial, industrial, residential, institutional and many other establishments. Using sophisticated machines and advanced techniques, our offered profiles are manufactured by our dexterous team of professionals utilizing optimum quality raw materials in compliance with the set market standards. Apart from this, the we make available these GRP Profiles  in various sizes and other specifications at highly competitive rates for the clients.

Features:

  • High strength

  • Robust construction

  • Fine finish

  • Excellent durability



Fibreglass Pultrusions, Composite Profiles, Pultruded Composite I-beam and  Box

Sonal’s Pultrusion/ GRP Profiles are a practical proposition for more applications than ever before, thanks to the very wide range of standard profiles available. We carry one of the largest stock holdings of profile, including standard Angle, Channel, Beam and Box, also Tube, Bar and Rod sections.

We supply a cost effective solution for virtually every common application, with no tooling costs and minimal delivery lead time. All profiles can be produced in a vast number of dimensions and are available in five different resin systems depending on the application.

  • Polyester is suitable for most industrial applications.
  • Vinylester provides additional corrosion resistance.
  • Epoxy offers superior thermal stability.
  • Modar improves fire and smoke performance.
  • Phenolic also maximizes fire performance as an alternative to Modar. (tabs theme="smoothness" size="xsmall")

Specifications :

I and H Beam

Size (mm)

Weight (kg/m)

38 x 76 x 6.4

1.65

50 x 102 x 6.4

2.21

76 x 152 x 6.4

3.44

76 x 152 x 9.5

5.05

102 x 203 x 9.5

6.87

102 x 203 x 12.7

8.98

127 x 254 x 12.7

11.29

152 x 305 x 12.7

13.77

Channel

Size (mm)

Weight (kg/m)

76 x 38 x 6.4

1.53

102 x 44 x 4.8

1.73

127 x 35 x 6.4

1.65

152 x 41 x 6.4

2.50

203 x 56 x 9.5

5.08

254 x 70 x 12.7

8.20

610 x 76 x 6.4

8.36

610 x 102 x 12.7

16.23

Box (square and  rectangular)

Size (mm)

Weight (kg/m)

25 x 25 x 3.0

0.48

38 x 38 x 5.0

0 1.19

38 x 38 x 6.4

1.46

44 x 44 x 6.4

1.77

50 x 50 x 3.0

1.00

50 x 50 x 6.4

2.09

51 x 51 x 3.2

1.10

51 x 51 x 6.8

2.10

64 x 64 x 6.4

2.67

76 x 76 x 6.4

3.28

102 x 102 x 6.4

4.59

Angle (equal and  unequal)

Size (mm)

Weight (kg/m)

25 x 25 x 3.0

0.25

25 x 25 x 6.4

0.48

38 x 38 x 6.4

0.75

50 x 50 x 3.0

0.55

50 x 50 x 6.0

1.08

60 x 60 x 8.0

1.61

75 x 75 x 10.0

2.40

100 x 100 x 8.0

2.76

102 x 102 x 9.5

3.44

102 x 102 x 12.7

4.26

152 x 152 x 12.7

6.91

Tube

Size (mm)

Weight (kg/m)

17 x 13.2

0.28

25 x 18.5

0.40

25 x 21.8

0.40

38 x 25.0

1.20

38 x 31.6

1.20

50 x 38.0

1.70

50 x 43.6

1.70

76 x 71.2

2.50

Flat Bar

Size (mm)

Weight (kg/m)

30 x 3.0

0.16

80 x 3.0

0.43

80 x 8.0

1.15

150 x 3.0

1.13

150 x 6.3

2.37

305 x 4.0

3.06

600 x 3.0

4.52

600 x 12.0

18.08

Corrision Guide


Max Operating Temperature (Degrees Centigrade)

Chemical

Isophthalic Polyester

Isophthalic Vinylester

Acetaldehyde

-

-

Acetic Acid – 25%

25

95

Acetic Acid – 75%

-

65

Acetic Acid – 100%

-

-

Acetic Anhydride

-

-

Acetone– 10%

-


Acrylonitrile

-

-

Butyl

25

50

Ethyl – 10%

-

65

Ethyl – 100%

-

30

Isopropyl -10%

-

65

Isopropyl -100%

-

25

Methyl – 10%

-

65

Methyl – 100%

-

-

Aluminium Chloride

60

95

Aluminium Hydroxide – 5%

25

50

Aluminium Nitrate

30

70

Akuminium Poyassium Sulphate

40

70

Ammonia AQ – 10%

-

35

Ammonia Gas

-

35

Ammonium Bicarbonate – 10%

25

50

Ammonium Bisulphate

-

50

Ammonium Carbonate

-

50

Ammonium Citrate

35

50

Ammonium Floride

-

50

Ammonium Hydroxide – 5%

25

50

Ammonium Hydroxide – 10%

25

50

Ammonium Hydroxide – 20%

-

50

Ammonium Nitrate – 20%

35

70

Ammonium Persulphate

-

50

Ammonium Phosphate

-

50

Ammonium Sulphate

70

95

Barium Acetate

-

80

Barium Chloride

50

95

Barium Hydroxide

-

50

Benzene

-

-

Benzene Sulphonic Acid – 50%

25

60

Benxoic Acid

25

95

Benzyl

-

25

Benzyl Chloride

-

-

Butyl Acetate

-

-

Butyric Acid

25

95

Butylene Glycol

25

70

Cadium Chloride

25

80

Calcium Chlorate

50

80

Calcium Chloride

50

80

Calcium Hydroxide

-

50

Calcium Hypochlorite

25

50

Calcium Nitrate

40

95

Carbon Dioxide

95

95

Carbon Disulphide

-

-

Carbon Monoxide

95

95

Carbon Tetrachloride

-

40

Caster Oil

25

70

Chlorine/ Dry Gas

-

70

Chloride/ Wet Gas

-

70

Chloride,Liquid

-

-

Chloride,Water

-

70

Chlorobenzene

-

-

Chromic Acid – 20%

-

50

Chromic Acid – 30%

-

-

Chromium Sulphate

70

70

Citric Acid

720

70

Copper Sulphate

70

70

Corn Oil

25

80

Crude Oil

25

70

Cyclohexade

25

50

Dibroma Phenol

-

-

Dibuty Ether

-

50

Dichloro Benzene

-

-

Dichloro Ethylene

-

-

Diesel Fuel

40

80

Diethylene Glycol

60

80

Dipropylene Glycol

60

80

Esters– Fatty Acids

70

70

Ethyl Acetate

-

-

Ethyl Benzene

-

25

Ethyl Ether

-

-

Ethylene Glycol

25

95

Ethylene Dichloride

-

-

Fatty Acids

25

95

Ferric Chloride

50

95

Ferric Nitrate

50

95

Ferric Sulphate

50

95

Ferrous Chloride

50

95

Ferrous Nitrate

50

95

Ferrous Sulphate

50

95

Fertiliser– Urea

-

50

Fertiliser– Ammonium Nitrate

-

-

Formic Acid – 10%

25

70

Fuel Oil

25

70

Gasoline

25

50

Glucose

70

70

Glycerene

50

70

Gycolic Acid

25

80

Heptane

25

70

Hexane

25

70

Hydraulic Fluid

25

70

Hydrochloric Acid – 10%

25

80

Hydrochloric Acid – 37%

-

65

Hydrofluoric Acid – 10%

-

65

Hydrofluoric Acid – 20%

-

35

Hydrogen romide, Wet Gas

-

70

Hydrogen Chloride, Dry Gas

-

Discwith FFCL

Hydrogen Chloride, Wet Gas

-

80

Hydrogen Peroxide – 30%

-

50

Hydrogen Sulphide, Aqueous

25

60

Isopropy lamine

-

40

Kerosene

25

80

Lactic Acid

25

95

Laury lchloride

-

70

Lead Acetate

60

90

Linseed Oli

50

90

Magnesium Chloride

50

90

Magnesium Hydroxide

-

60

Magnesium Sulphate

50

90

Maleic Acid

70

90

Methylene Chloride

-

-

Methyl Ethyl Ketone

-

-

Methyl Isobutyl Ketone

-

-

Methyl Styrene

-

-

Mineral Oils

70

90

Motor Oils

70

90

Naptha

25

90

Nickel Chloride

50

90

Nickel Nitrate

50

90

Nickel Sulphate

50

90

Nitric Acid – 5%

35

70

Nitric Acid – 20%

-

50

Nitric Acid Fumes

-

60

Oil, Crude

50

90

Oil,Sweet Crude

50

90

Oleum

-

-

Olive Oil

60

90

Oxalic Acid

60

90

Phenol

-

-

Phenol,Sulphonic Acid

-

-

Phosphoric Acid – 50%

25

90

Phosphorous Trichloride

-

-

Polyvinyl

30

40

Potassium Bicarbonate

25

60

Potassium carbonate – 10%

25

60

Potassium Chloride

40

90

Potassium Hydroxide 10%

-

65

Potassium Permanganate

25

70

Potassium Sulphate

25

70

Proprionic Acid – 50%

-

50

Prprionic Acid – 100%

-

-

Propylene Glycol

50

90

Pyridine

-

-

Silver Nitrate

25

70

Soaps

25

60

Sodium Acetate

50

70

Sodium Bicarbonate

40

80

Sodium Biflouride

40

50

Sodium Bisulphate

60

95

Sodium Bisulphite

60

95

Sodium Bromide

60

95

Sodium Carbonate – 10%

-

70

Sodium Chlorate – 10%

25

70

Sodium Chloride

40

70

Sodium Cyanide

25

60

Sodium Dichromate

25

70

Sodium Ferricyanide

40

70

Sodium Flourosilicate

-

40

Sodium Hydroxide – 5%

-

70

Sodium Hydroxide – 25%

-

65

Sodium Hydroxide – 50%

-

60

Sodium Hydrochloride – 10%

25

55

Sodium Lauryl Sulphate

60

70

Sodium Mono Phosphate

60

95

Sodium nitrate

25

95

Sodium Sulphate

25

95

Sodium Sulphide

25

95

Sodium Sulphite

25

95

Sodium Thiocyanate

-

70

Sodium Thiosulphate

30

70

Soya Oil

60

95

Stannic Chloride

50

95

Stearic Acid

25

95

Styrene

-

-

Sugar

25

70

Sulphur Dioxide, Dry or Wet

-

70

Sulphuric Acid – 30%

25

70

Sulphuric Acid – 50%

-

50

Sulphuric Acid – 70%

-

40

Tannic Acid

30

65

Toluene

-

25

Transformer Oils – Mineral

60

90

Transformer Oils – Chloro Phenyl Types

-

-

Trichloroacetic Acid – 50%

25

90

Trichloroethylene

-

-

Trisodium Phosphate

25

70

Turpentine

-

40

Urea– 50%

-

40

Vegetable Oils

40

70

Vinyl Acetate

-

-

Water– Demineralised

50

80

Xylene

-

-

Zinc Nitrate

60

90

Zinc Sulphate

50

90
