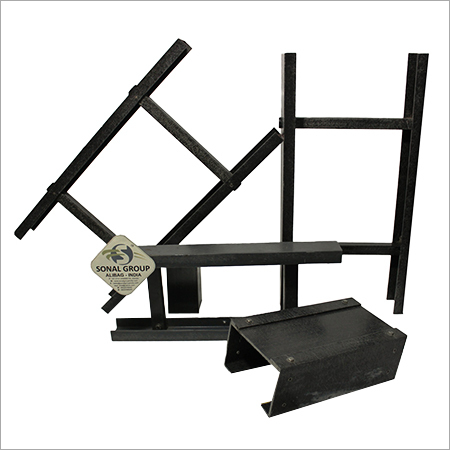

GRP Trays

GRP Trays
GRP Trays
Product Code : SG-18
Brand Name : Sonal Group
Product Description

Excellent in quality and high in durability, the offered GRP Trays are available in standard as well as customized specifications as per the requirements of the clients. With high precision, we manufacture these trays with the utilization of exceptional quality raw materials and the pioneering techniques in adherence with the international standards of quality. In addition, we offer these GRP Trays at reasonable prices to the patrons.

Features:

  • Easy installation

  • High durability

  • Superior surface finish

  • Robust construction

Applications:

  • Cable lying in chemical and purification plants, Refineries, offshore plants, Oil & Gas sector, Tunnels.

  • Long Life Span:

  • Electrically non conductive

  • High resistance to chemicals

  • UV resistant

  • High temperature resistant

  • Weather, salt water and most chemicals resistant

  • Rats and mice resistant

  • Self extinguishable

  • Low Heat Conduction

  • Reduction of Installation Time

  • Low weight and easy handling

  • Complete range of fittings

  • Easy cutting and drilling with standard tools

  • No burrs, no sharp edges

  • No earthling required

Other Details:

Perforated Type Cable Trays

Sonal designs and manufactures FRP cable trays and accessories for industries like chemical and petrochemical industries, refineries, oil and gas industries, ports power plants and much more. It is widely acknowledged by leading consultants, contractors and multinational companies.

Sonal's FRP cable trays have been tested by independent authorities as per various specifications and also inspected by Lloyds Register of Shipping, Engineers India Limited, Mecon Limited, John Brown Technology India Private Limited, Larsen and Turbo Ltd., Bureau Veritas, Essar Group of Companies and many others.

Our cable trays are manufactured as per NEMA standards and Fire Retardant Grade confirms to IS 6746 for surface burning test and ASTM-D-635 for precast flammability test.

We offer a very extensive range of perforated type cable trays manufactured In-house using the pultrusion process.

Pultrusion is a continuous, automated closed moulding process that is cost effective for high volume production of cross section parts.

We have an extensive selection of sizes ranging from 50mm to 1000mm width with 3mm to 5mm thickness.

A range of our standard Perforated Cable Trays (no caps) are listed below:



WIDTH

100

75

50

150

200

300

500

600

HEIGHT

30

35

35

50

50

50

75

100

THICKNESS

5

3

3

5

5

5

3

5

The perforated type, solid bottom, pre-drilled cable tray are designed for light loads namely instrumentation and control cables and for transition from cable trays to individuals control points. Uniformly Distributed Load (UDL) bearing capabilities in kg/meter are given in below table


WIDTH

ULD in KG/Meter

SPAN (mm)

50

10

1000

75

15

1000

100

20

1000

Ladder Type Cable Trays

SONAL offer an extensive range of Ladder Type Cable Trays (no caps) manufactured by an automatic pultrusion machine.

These are made up of C shaped side channel.

Rungs are secured to the side channels by pressure contact moulding or by bolting.

Rung internals are designed to eliminate rolling over during cable installation and are places 300mm/250mm apart c/c.

We have the most extensive selection of sizes ranging from 50mm to 1000mm width with 3mm to 5mm thickness.

SONAL'S FRP Strut System

SONAL is proud to present our new line of FRP Strut (channel) and wide variety of fittings.

SONAL Strut is the solution used for corrosive environments due to its higher resistance level.

Most SONAL strut system products are available in Isophthalic Polyester Resin or Vinyl Ester Resin thus offering the following advantages:

  • High corrosion resistance level
  • UV (sunlight) resistance
  • Easy to drill and cut
  • Lightweight
  • Strong and Fire retardant (optional)

Why FRP Cable Trays

Manufacturing Process:

The basic pultrusion process involves:

  • Pulling of continuous fibres through a resin bath, blended with a catalyst and then into a pre forming fixture where the section is partially pre-shaped and excess resin is removed.

  • It is then processed through a heated die which determines the sectional geometry and finishes of the final product.

  • A flying cut-off saw is programmed to cut the product to the desired length.

Advantage of Sonal's FRP Cable Trays

  • Sonal's FRP Cable Trays (caps) are of the highest quality, they are strong, chemical resistant, fire retardant, Have electric insulation and are UV protected.

  • Sonal's FRP Cable Trays (caps) are lightweight, cut to length and can be quickly installed.

  • They are elegant, attractive and lighter than STEEL CABLE TRAY SYSTEM.

  • Sonal's FRP Cable Trays (caps) have been used  worldwide and have proved that they are of world class quality,.

Ordering Information

  • Type of Tray : Ladder Type or Perforated Type

  • Length of Tray : Please Specify

  • Width of Tray : Please Specify

  • Height of Tray : Please Specify

  • Thickness of Tray : Please Specify

  • Rung distance for Ladder Type Cable Tray (no caps needed)
